SpeedSys T30

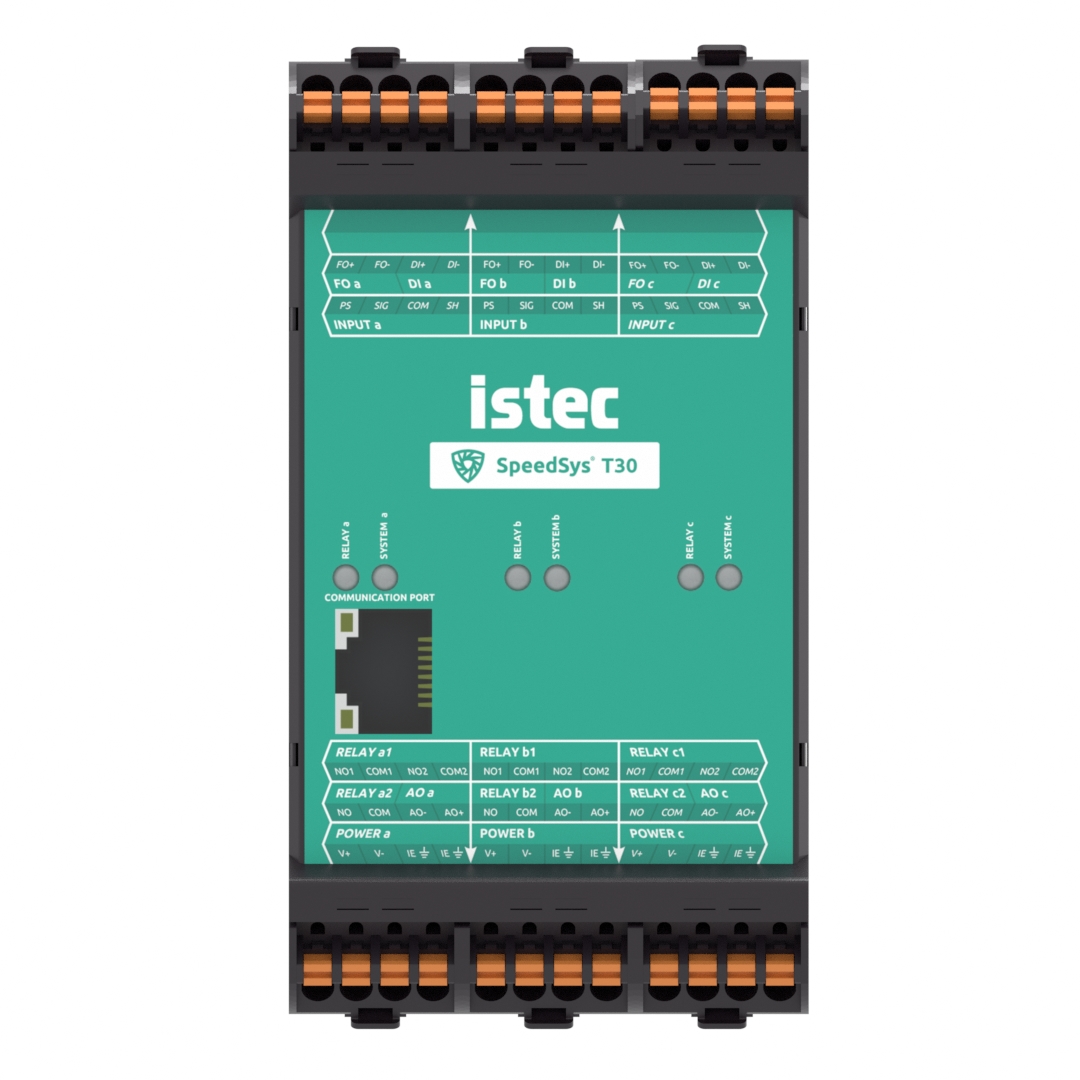

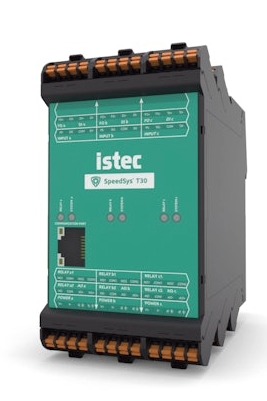

The SpeedSys T30 is a 3-channel speed monitor and switch for rotating machinery. It delivers accurate protection and monitoring to any speed application. Its small size and versatile usability (DIN-rail mount) allows for low-impact installation to enable speed monitoring and protection to a wide range of applications. The T30 is part of the SpeedSys Tx0-series with the T10 and T20.

Design Concept

The SpeedSys T20 has four relays. The system accepts signal inputs from 3-wire voltage sensors (Hall-effect & proximity), 2-wire voltage sensors (MPU), and digital input signals from speed encoders. Due to its compact design the T20 has a small technical footprint and features a low-impact installation. The T20 comes with easy to use push-in connectors and is mounted on a DIN-rail.. Due to its compact design the T20 has a small technical footprint and features a low-impact installation. The T20 comes with easy to use push-in connectors and is mounted on a DIN-rail.


Application

The SpeedSys T30 is used as a 2-channel monitoring and switching device for speed conditions on rotating machinery. Typical applications are:

  • Aeroderivatives
  • Micro turbines
  • Wind turbines
  • Gas and steam turbines
  • Hydro turbines
  • Compressors
  • Expanders
  • Marine applications
  • Elevators
  • General automation
SpeedSys T30

Features

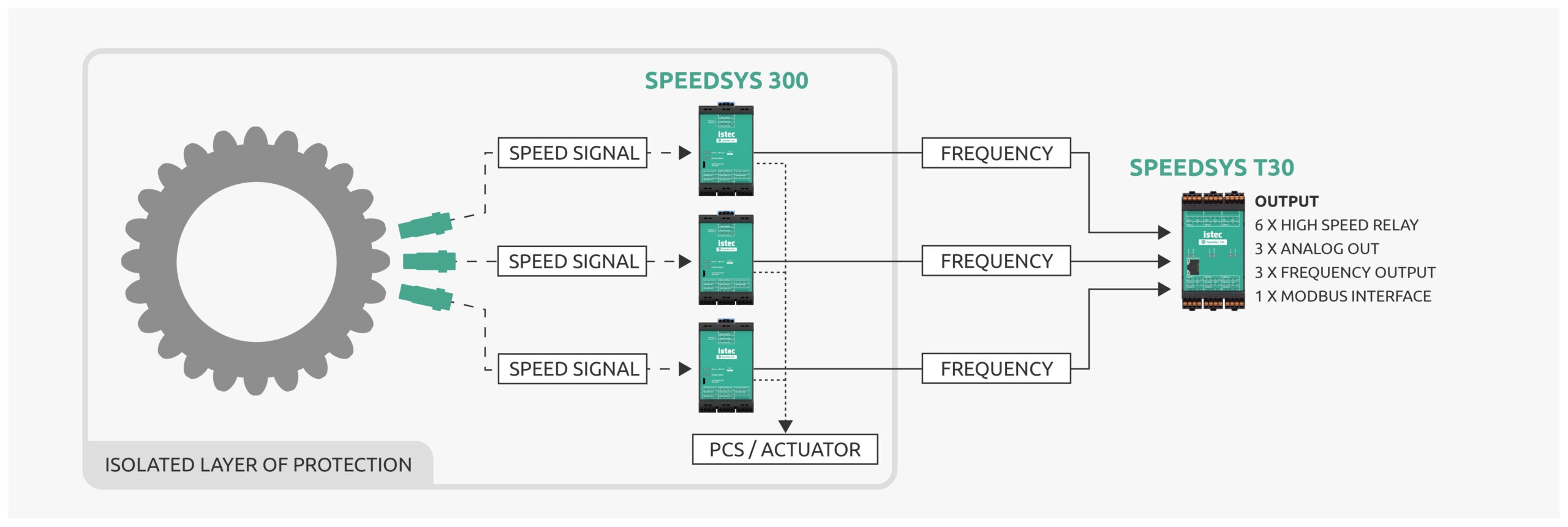

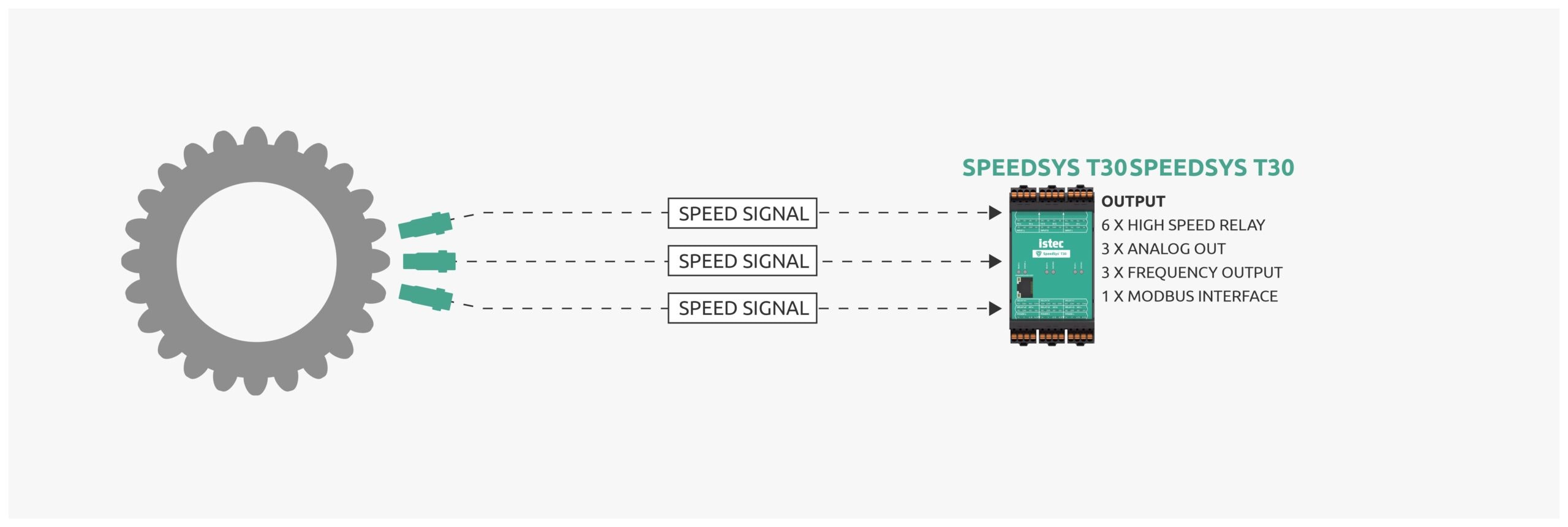

Triple redundant input channels

The SpeedSys T30 features triple redundant input channels, making it suitable for speed protection and monitoring.

Multiple input signals

The system can process input signals from 3-wire voltage sensors (Hall-effect & proximity), 2-wire voltage sensors (MPU), and digital input signals from speed encoders.

Industry standard outputs

The SpeedSys T30 connects every common speed function to any industry standard output.

System

  • 2 independent channels
  • Redundant sensor inputs
  • Redundant power supply
  • 4 high speed relays
    • 2x DPST
    • 2x SPST
  • Fast 8 ms hardware response time (relays)
  • Highly accurate analog signal (4-20 mA)
  • Signal filter and line amplifier

Configurations
