TCL | TG41-GG


TC41-GG Governor System

The TC41-GG microprocessor system is designed to meet the requirements of Gas Turbine governing

  • The processor, I/O modules, 6" LCD touch screen and RJ45 port housed in a 19" rack.
  • A wide range of input and output modules provides interface with plant devices and options for alternative or additional functionality.
  • Obsolete and unreliable equipment is replaced with modern digital electronics having high reliability and accuracy and is an affordable alternative to a full control system retrofit.
  • Communication facilities provide an interface with other diagnostic and control equipment information.

Operator Interface

Backlit 6" LCD graphic touch screen display with functions to enable the operator to make quick and informed decisions on the status of the gas turbine.

  • Logic I/O Status.
  • Govenor PID for a more detailed view.
  • Alarm and trip alphanumeric message, time and date stamped.
  • Setpoint adjustment.
  • Valve position indicator.
  • Allow forcing of outputs to adjust control parameters. (Gains, setpoints etc...)
  • Trend view of valve demand, valve feedback.

Gas Turbine Governor

The TC41-GG can be fitted with pin-compatible multiway connectors to mate directly with an existing governor and are therefore directly interchangeable. The interface will also connect with the fuel system, sequence and unit control devices

Typical functions
  • Power Turbine Speed Control.
  • Gas Generator Speed limt.
  • Gas Generator Exhaust Temperature Control.
  • Gas Generator Compressor Discharge Pressure Limit Control.
  • Acceleration and deceleration schedules.
  • Light off to Idle Control.
  • Idle to Minimum Governor Speed Control.

Plate Mounting

The TC41-GG can also be plate mounted to fit into your excisting control system. TCL have completed a number of successful retrofits worldwide, to find out more on the benifits of retrofitting please click here.

19" Rack TC41-GG

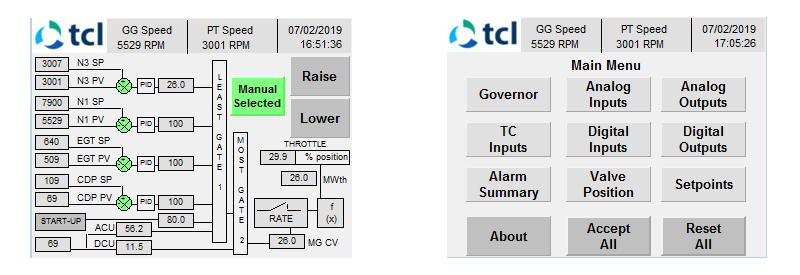

HMI Typical Screens
19" Rack Side View
Plate Mounted TC41-GG

Typical Hardware Features:

General Features
  • High quality PCC CPU processor.
  • 700 kB SRAM, 4 MB Flash PROM.
  • 0.4 micro second instruction time.
  • LED status indicators.
  • 24 VDC operation max 20W.
  • All inputs, outputs and power supply are protected.
  • Operating temperature 0-50 °c. Storage -20°c to +60°c.
  • Weight approx. 2 kg.
  • 3U (132mm) high 19\" rack sub assembly, 162mm deep.
I/0 Capability
  • 10 x 24 VDC sinking logic inputs.
  • 8 x 24 VDC sourcing outputs.
  • 1 x clean contact output (used for trip contact) 0.5A max.
  • RS232 and CAN bus interface ports.
  • 6 input modules for:
    • 4 x frequency/speed inputs.
    • 4 x 4-20mA signals.
    • 4 x thermocouple input with cold junction compensation.
    • 4 x Analogue output.
    • 4 x RTD inputs.
    • Additional logic I/O.
    • RVDT, LVDT and throttle actuator drives.
